Note: This studio monitor is sold as a single piece.

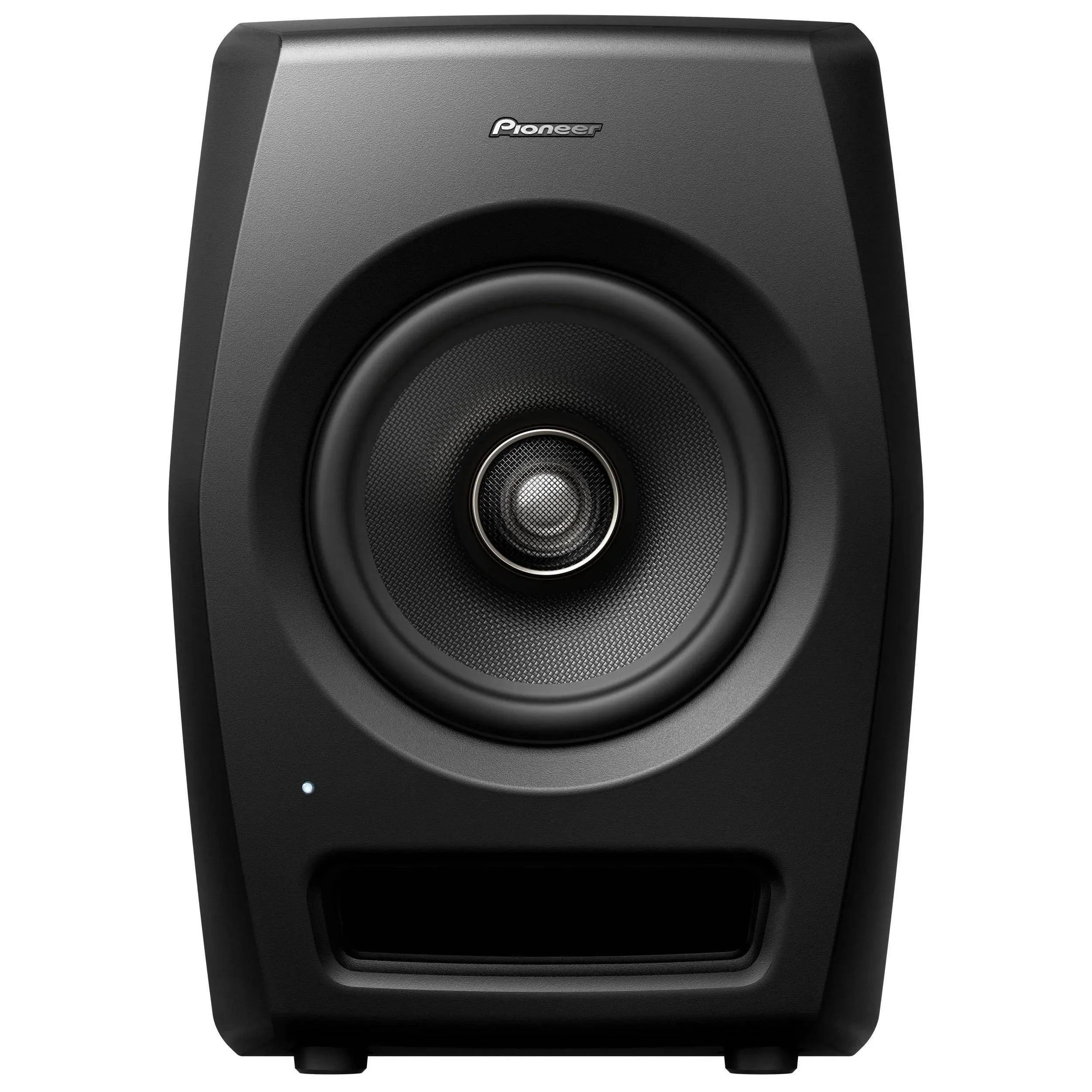

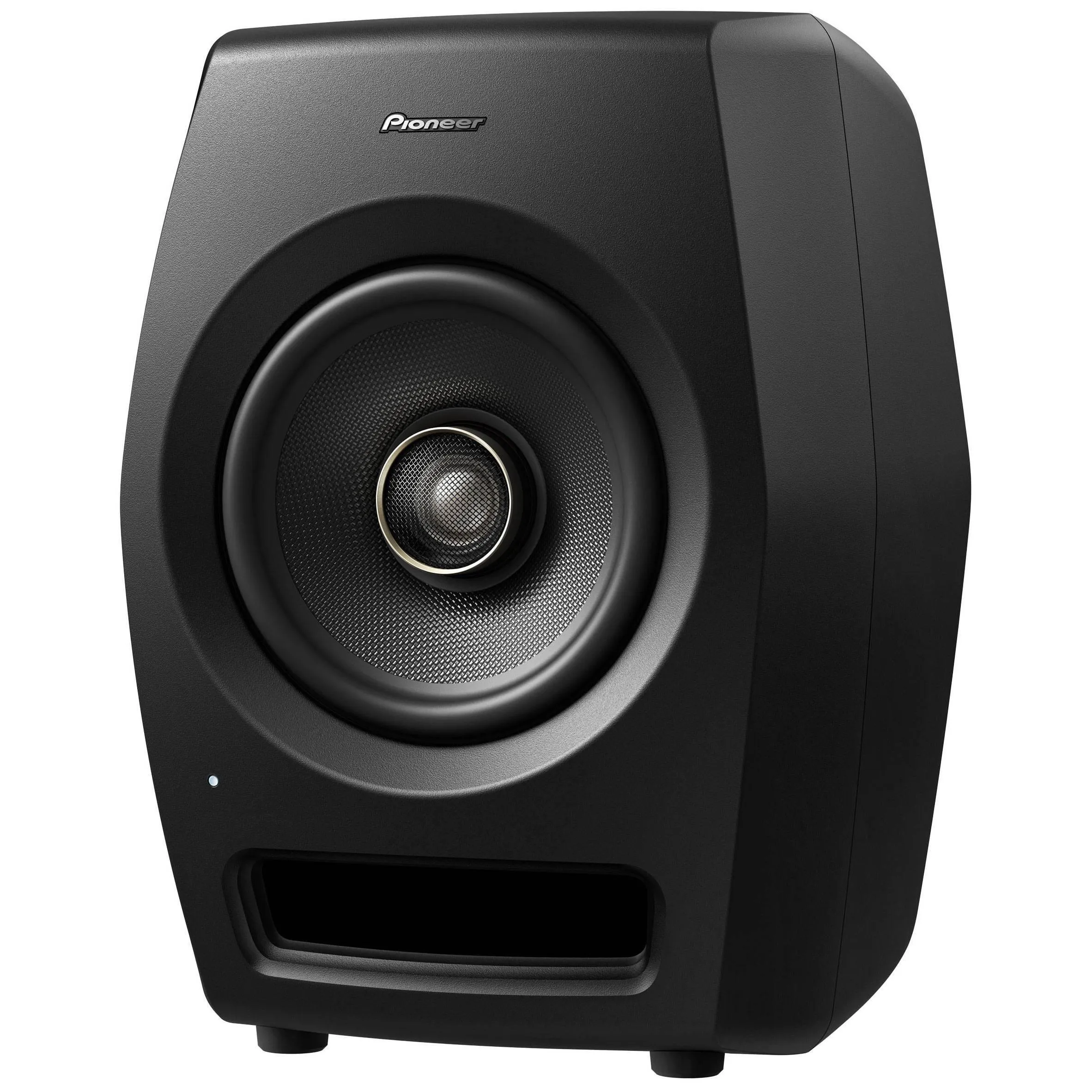

The RM-07 from Pioneer is a 2-way active studio monitor designed to provide accurate sound reproduction and extended high frequencies for audio engineers, music producers, composers, and songwriters in small- to mid-sized control rooms and personal studios. The 150W Class AB amplifier is bi-amped to drive a 6.5" aramid fibre woofer and 1.5” hard-dome aluminium tweeter, yielding a frequency response of 40 Hz to 50 kHz.
Features
- 6.5" Aramid Fiber Woofer
- 1.5" Hard-Dome Aluminum Tweeter
- 150W Bi-Amped Class AB Amplifier
- 40 Hz to 50 kHz Frequency Range
Tech Specs
| Monitor Type | Active 2-Way |
| Enclosure | Bass-Reflex, Shielded |
| Drivers | HF Driver: 1 x 1.5" / 3.8 cm |
| Aluminum Dome Tweeter | |
| LF Driver: 1 x 6.5" / 16.5 cm Fiberglass Woofer | |
| Amplification | HF Amplifier: Class-AB Rated at 50 W |
| LF Amplifier: Class-AB Rated at 100 W | |
| Frequency Range | 40 Hz to 50 kHz |
| Maximum Sound Pressure Level (SPL) | 109 dB |
| Analog Input Sensitivity/Gain | 6 to -40 dB (Continuously Variable) |

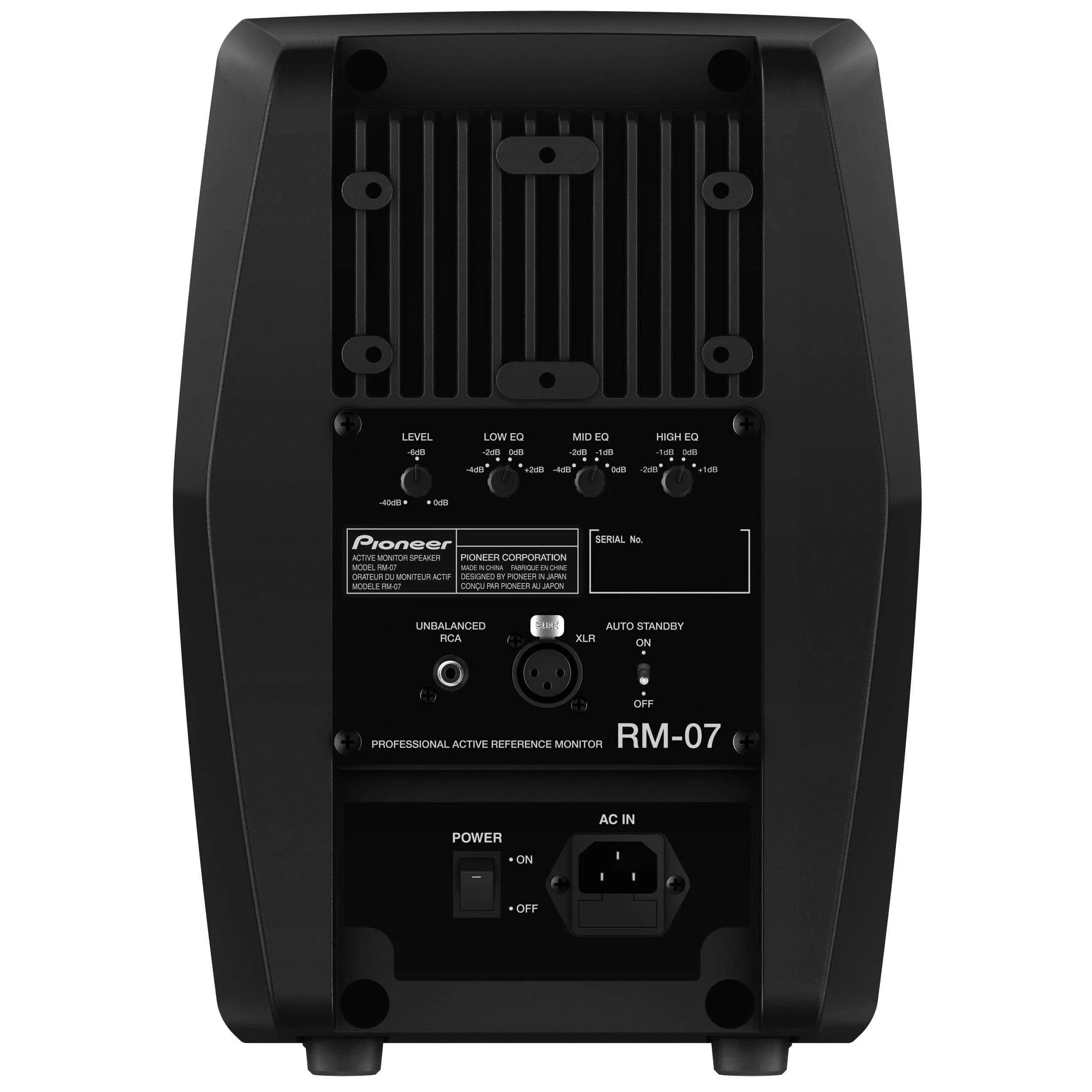

| I/O | 1 x 3-Pin XLR Balanced Analog Input (10 kOhms) |
| 1 x RCA Unbalanced Analog Input | |
| AC Input Power | 100 VAC, 50/60 Hz |
| 110 to 120 VAC, 50/60 Hz | |
| 220 to 240 VAC, 50/60 Hz | |
| Power Consumption | 0.3 W (Standby) |
| 195 W (Maximum) | |
| Enclosure Material | Aluminum |
| Dimensions (W x H x D) | 9.6 x 13.3 x 10.2" / 244 x 337 x 260 mm |
| Weight 27.1 lb / 12.3 kg |
